The Multi-Agent Lead Qualification Workflow: An n8n Architecture Guide for B2B Outbound

The Outbound Bottleneck: Why Enrichment Fails at Scale

Most B2B SMBs mistake mass-blasting for a scalable outbound strategy. They scrape a generic list from Apollo, drop it into an email sequencer, and wonder why their reply rate hovers at a dismal 1–2%. The teams that scale successfully in 2026 do the opposite: they rely on deep, per-prospect research snapshots.

However, doing this manually wastes 15+ hours a week per SDR, while running it entirely through monolithic third-party SaaS tools blows up data enrichment budgets instantly.

When you scale past 5,000 leads a month, paying per-credit fees for basic filtering becomes unsustainable. To solve this, we architect custom, self-hosted multi-agent systems using n8n. By shifting to a localized, programmatically managed data flow, you keep full control over your logic, drastically reduce operational API overhead, and build hyper-personalized outbound hooks that read like an expert SDR wrote them.

---

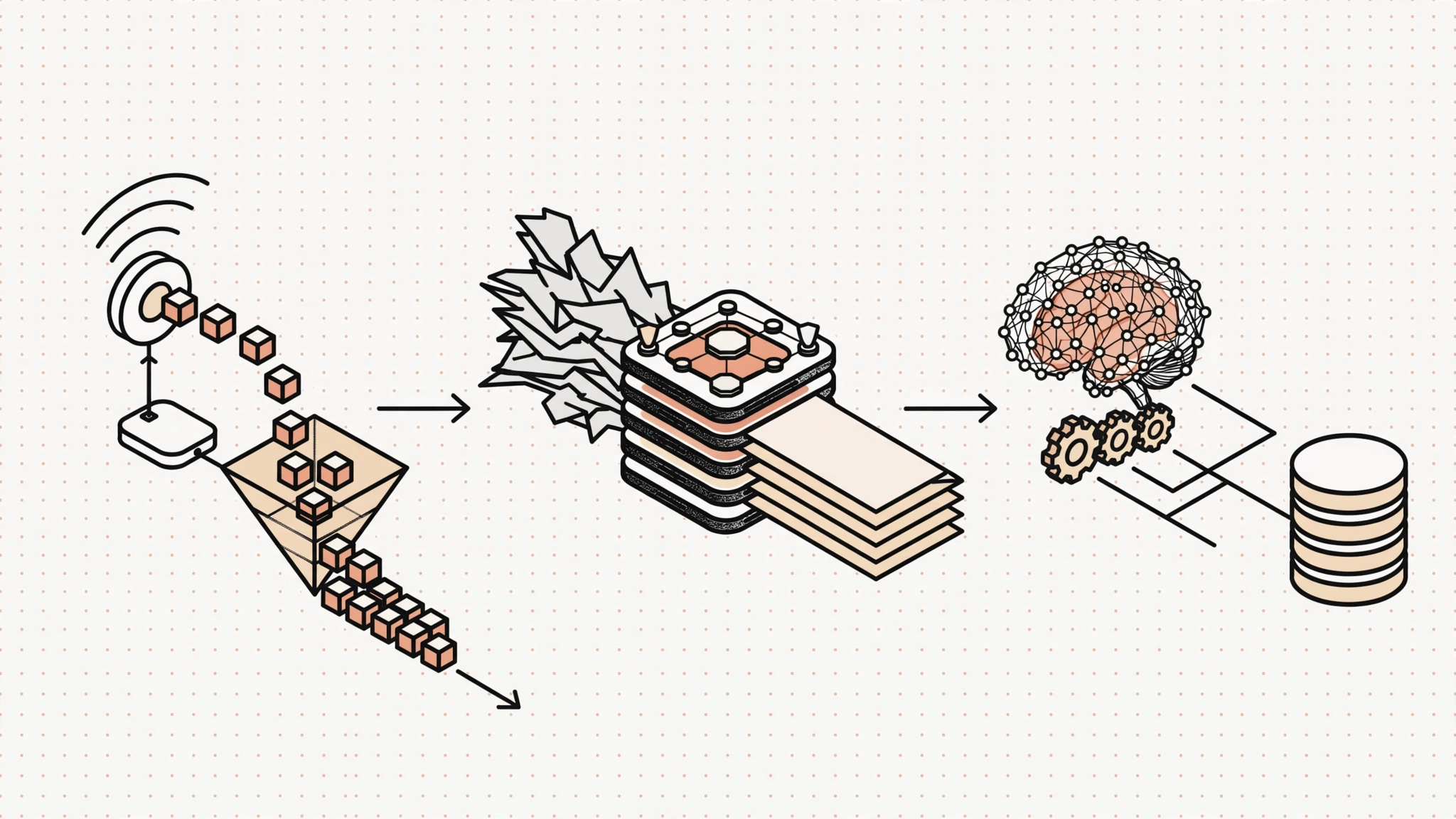

The Three-Tier Pipeline Architecture

To create a highly reliable automated engine that won't drop payloads or freeze under heavy load, you cannot dump all your logic into a single workflow thread. At OperateAI, we structure lead qualification using a decoupled three-tier architecture.

This separates concerns so that if an external scraping node fails or an LLM rate-limit triggers, the incoming data queue remains safe and uncorrupted.

[Data Ingestion Tier] ──> [Context Enrichment Tier] ──> [AI Scoring & Routing Tier]
(Apollo/Clay/Webhooks)     (HTTP Scraping & Markdown)    (n8n Advanced AI & CRMs)

The data parameters pass systematically across four core stages, mapped clearly below:

Pipeline Stage	Core Node / Infrastructure Component	Functional Responsibility	Primary Output Payload
1. Data Ingestion	Webhook Node / API Trigger	Intercepts inbound raw company data and handles initial token authorization	Sanitized raw JSON payload
2. Context Enrichment	HTTP Request Node (Proxy-backed)	Extracts clean text content and metadata from the target business domain	Cleaned markdown text string
3. AI Multi-Agent Evaluation	n8n Advanced AI (AI Agent Node + Tools)	Analyzes scraped site structure against Ideal Customer Profile (ICP) criteria	Validated JSON (Score 1-10 + Reasoning)
4. CRM & Action Routing	Switch Node / Tool Webhooks	Dispatches qualified hot targets to sales pipelines; deposits cold data into long-term sheets	Post-REST API confirmation

---

Tier 1: Automated Data Ingestion & JSON Normalization

The entry point of the pipeline accepts incoming webhooks from data providers like Apollo, Clay, or an inbound web form. The primary challenge here is data hygiene. Different sources format company attributes differently.

Your ingestion node must parse the payload and pass a normalized schema downward. If a data tool passes a full URL (https://www.operateai.in/blog), your workflow must extract the root domain (operateai.in) to prevent subsequent scraping tools from failing due to bad path formatting.

We use an optimized n8n Code Node executing JavaScript to handle this instantly before pushing the data down the line:

// Clean and normalize input data fields
for (const item of $input.all()) {
  let rawUrl = item.json.company_domain || "";
  // Strip protocols and subdirectories to isolate the root domain
  let cleanDomain = rawUrl.replace(/^(https?:\/\/)?(www\.)?/, "").split('/')[0].toLowerCase();
  item.json.normalized_domain = cleanDomain;
}
return $input.all();

---

Tier 2: Cost-Effective Context Enrichment via Scraping

Once the root domain is isolated, the workflow initiates target profile mapping. Instead of burning expensive enterprise credits just to pull general descriptions, the workflow triggers a direct HTTP Request Node targeting the prospect's homepage or /about directory.

To maximize compliance and prevent IP blocks from security firewalls, we route these requests through rotating residential proxies. The raw HTML response is passed immediately into an HTML-to-Markdown parser node. This strips heavy visual stylings, script tags, and tracking scripts, leaving an ultra-lean text layout.

By feeding raw markdown instead of messy HTML into the AI model, you save up to 70% on LLM token context usage while keeping processing times lightning fast.

---

Tier 3: The Multi-Agent Scoring Engine & Schema Validation

This is where the standard automated workflow transforms into a smart engine. Using the native n8n Advanced AI library, we implement an isolated AI Agent Node utilizing a reasoning model (such as Claude 3.5 Sonnet or GPT-4o).

Rather than executing a basic text prompt, the agent is configured with a strict System Prompt that acts as an internal quality filter. It is supplied with a specific definition of your Ideal Customer Profile (ICP), specifying target business size, explicit pain points, and product fit signals.

To ensure the AI response can be cleanly interpreted by downstream CRM nodes without breaking, we enforce a strict JSON output schema using a Structured Output Parser node. The agent must return exactly two data properties:

1. qualification_score: A numeric integer from 1 to 10.
2. justification_reasoning: A single, plain-text string detailing exactly why the score was assigned based on the scraped text elements.

If the score returns an 8 or above, an n8n Switch Node instantly routes the prospect payload to your primary active CRM (like HubSpot or close.com) and fires a priority notification to your Slack channel. Low-scoring prospects are quietly moved to a background database for long-term nurture campaigns.

---

Live Infrastructure Cost Blueprint

Many founders fear that running multi-agent AI loops will lead to massive unpredictable monthly cloud statements. By utilizing a self-hosted architecture, your overhead remains entirely predictable and isolated.

Here is the exact financial breakdown of running this system at production scale (processing roughly 10,000 qualified lead operations monthly):

• Self-Hosted Server Infrastructure: ₹1,800/month ($20 VPS on Hetzner or DigitalOcean running a Docker container for n8n). This covers unlimited workflow executions with zero task-count fees.
• LLM API Processing Costs: ~₹2,500/month (using Claude 3.5 Sonnet via the Anthropic API, heavily optimized by stripping HTML to markdown text).
• Residential Proxy Network Allocation: ₹1,200/month for stable target domain scraping passes.
• Total Monthly Operational Running Cost: ~₹5,500/month.

Compared to traditional enterprise data applications that charge seat licenses and steep tiered usage fees, this self-contained framework pays for itself within the first few days of operation.

---

What We Recommend at OperateAI

If you are a growing B2B SMB looking to scale outbound infrastructure, stop buying more disconnected SaaS apps that inflate your overhead without communicating with one another.

Here is our blueprint for rolling out this framework effectively:

• Start with core integration first: Map your entry points (Apollo, Clay, or CSV sheets) completely before writing your AI prompt guidelines.
• Enforce strict structured outputs: Never let an AI agent output unformatted paragraphs to a database. Enforce strict JSON variables to prevent routing node errors.
• Isolate and self-host your operations: By setting up n8n on your own cloud servers, you maintain complete data sovereignty and avoid ongoing execution caps.

Need an enterprise-grade multi-agent system custom-built and deployed directly onto your company's infrastructure in under two weeks? Explore our Lead Generation Automation Services → or schedule a direct, pitch-free architectural roadmap call with us today.

---

FAQ

Q: Can I run this workflow inside the cloud tier of n8n instead of self-hosting? Yes. While the self-hosted setup offers the highest cost savings for high-volume execution, you can run this exact three-tier pipeline architecture on the n8n Cloud Advanced tier. Just monitor your active execution allowances closely.

Q: How does this pipeline handle complex JavaScript-heavy business websites? For basic targets, standard HTTP scraping nodes work perfectly. If your target lists contain modern JavaScript web structures, we integrate an automated browser tool (like a headless browser node or ScrapingBee API node) directly into the Tier 2 enrichment phase.

Q: Which LLM model is best suited for scoring complex B2B business profiles? For deep contextual logic and matching detailed brand criteria, Claude 3.5 Sonnet consistently outperforms other options. For simpler, rapid high-volume sorting sweeps, GPT-4o-mini offers exceptional processing speed at a fraction of the token cost.
